60349742 Water pump and piping assembly

发布日期：2026-02-11

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45   #Water pump and piping assembly

WhatsApp: +86 136 8539 5801

WeChat: 136 8539 5801

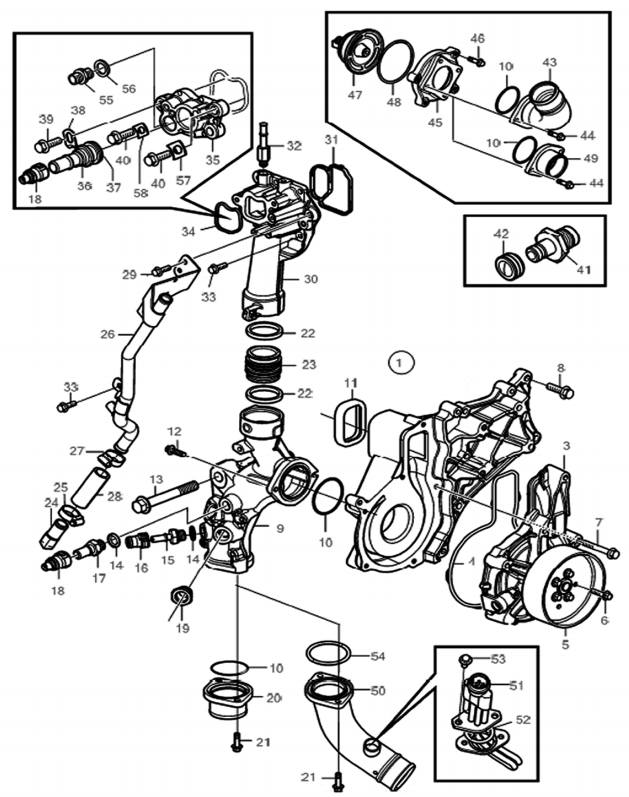

60349742 Water pump and piping assembly

1 60267648 Water Pump 1

3 60267649 Coolant Pump 1

4 60267650 Washer 1

5 60267651 Pulley 1

6 60203775 Flange Bolt 5

7 60203741 Flange Bolt 6

8 60267593 Flange Screw 6

9 60344729 Water Pipe 1

11 60132420 Sealing Ring 1

13 60267653 Flange Screw 1

14 60344730 Gasket 2

15 60267981 Connector 1

16 60267976 Connector 1

17 60267654 Nozzle 1

18 60267655 Quick Coupling 2

19 60267656 Socket 1

22 60086206 Water Pipe Sealing Ring 2

23 60267658 Connecting Pipe 1

24 60267659 Connector 1

25 60096595 Gearbox Oil Cooling Iron Water Pipe Clamp 1

26 60267660 Pipe 1

27 60131948 Hose Clamp 1

28 60132528 Rubber Hose 2

30 60267661 Connecting Pipe 1

31 60267662 Sealing Strip 1

32 60267663 Pipe Head 2

33 60203765 Flange Bolt 6

34 60267664 Sealing Strip 1

35 60267665 Connecting Pipe 1

36 60267666 Connector 1

37 60075867 Sealing Gasket 1

38 60267667 Tie Rod 1

40 60203734 Flange Bolt 2

41 60087996 Connector 1

42 60132979 Protective Cover 1

43 60267668 Pipe 1

45 60267669 Cover 1

46 60203731 Flange Bolt 4

47 60199251 Thermostat 1

48 60267670 Sealing Ring 1

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45   #Water pump and piping assembly

WhatsApp: +86 136 8539 5801

WeChat: 136 8539 5801

49 60267657 Oil return cooling pipe 1

50 60344731 Water pipe 1

51 60332430 Engine heating device 1

52 60132392 O-ring 1

53 60203735 Flange bolt 2

54 60263483 O-ring seal 1

55 60267672 Plug 1

56 60267673 Sealing ring 1

57 60344732 Connector 1

58 60086174 Small water pipe locking clip 1
