13487572 Front control panel assembly

发布日期：2026-02-13

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

1. Front panel switch and radio installation layout diagram 1          (13484262)

2. 26-pin rectangular plug B241000000218 (1)

3. Monitor 1 (13476016)

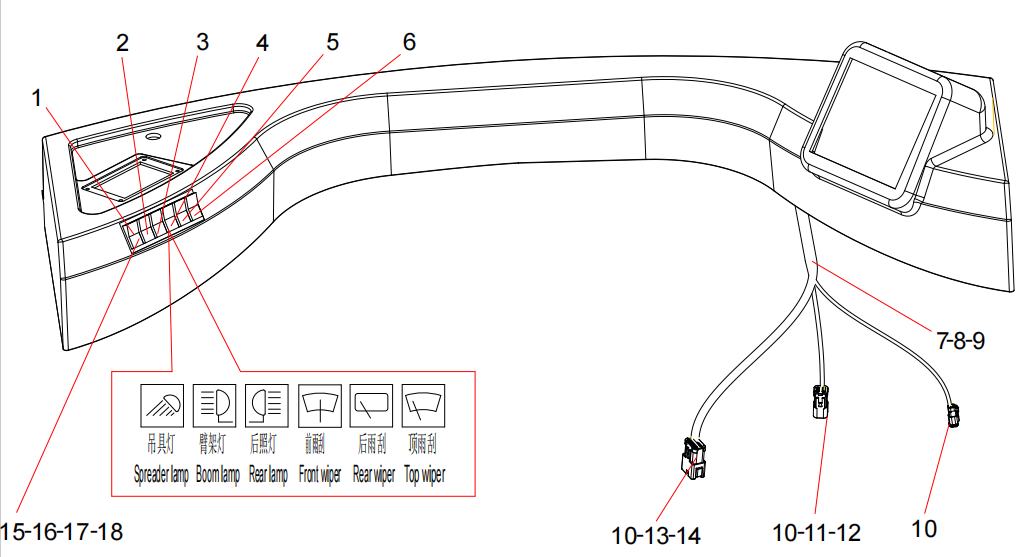

13484262 Front panel switch and radio installation layout diagram

1 B241800000016 Symbol Card 1

2 B241800000021 Symbol Card 1

3 B241800000008 Symbol Card 1

4 B241800000020 Symbol Card 1

5 B241800000005 Symbol Card 1

6 B241800000003 Symbol Card 1

7 A241900000014 2-Core Cable 2

8 A239900000563 Corrugated Pipe 2

9 A241900000012 Multi-Core Cable 2

10 A241000000040 Surface Mount Socket 26

11 13479570 2-Core Dechter Socket 1

12 A249900000519 Rocker Switch 6

13 13479727 12-pin Dechi socket 1

14 13479682 6-pin Dechi socket 1

15 A241200000539 Rocker switch 6

16 A249900000513 Side single frame 2

17 A249900000514 Middle single frame 4

18 A249900000520 Two-wire socket sleeve 6
