13571912 Engine and transmission assembly

发布日期：2026-02-15

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#13571912 Engine and transmission assembly

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

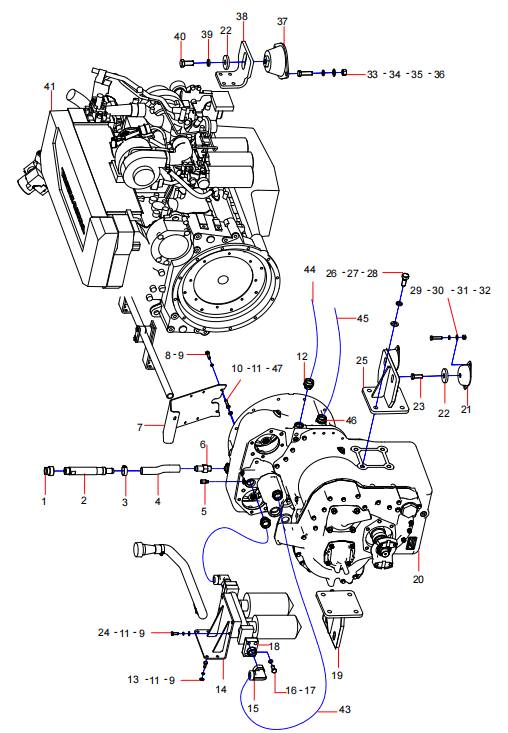

1 14042553 Filler cap 1

2 14142794 Filler port 1

3 A229900002838 Hose clamp 6

4 14231497 Hose 1

5 A820205001862 Pressure sensor connector 1

6 10514234 Connector 1

7 14231777 Bracket 1

8 A229900005830 Bolt 8

9 A210401000001 Spring washer 24

10 A210111000120 Bolt 12

11 A210405000011 Washer 4

12 B210780000671 Straight-through connector 4

13 A210204000161 Screw 4

14 A810102060047 Oil Filter Bracket 1

15 B210780000249 Split Flange 4

16 A229900009500 Bolts 8

17 A210111000215 Bolts 2

18 14231553 Torque Converter Oil Pipe Bracket 1

19 13029336 Right Gearbox Bracket 1

20 60308536 Gearbox 1

21 A820606030987 Shock Absorber 4

22 A820102010510 Washer 4

23 A210111000106 Bolts 4

24 A829900001449 Bolts 4

25 13029333 Left Gearbox Bracket 1

26 A829900001453 Bolt 8

27 A210401000006 Spring Washer 8

28 A210405000008 Washer 8

29 A210110000009 Bolt 8

30 A210401000002 Spring Washer 8

31 A210405000001 Washer 8

32 A210307000001 Nut 8

33 A210110000058 Bolt 4

34 A210401000005 Spring Washer 6

35 A229900001360 Washer 4

36 A210307000004 Nut 4

37 60100352 Shock absorber 2

38 13571273 Engine right bracket 1

39 A210401000007 Spring washer 6

40 A210111000224 Bolt 2

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

#13571912 Engine and transmission assembly

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

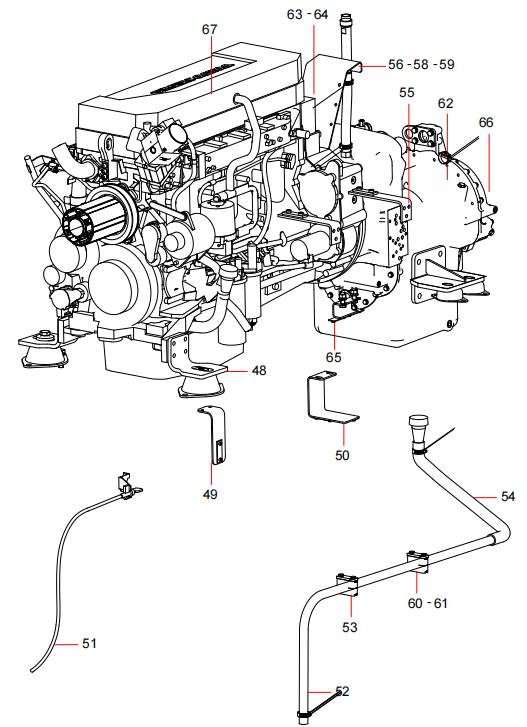

41 60265416 Engine 1

43 151009060033A Hose Assembly 1

44 61008171 Hose Assembly 1

45 60104241 Hose 1

46 A210434000015 Washer 2

47 A210404000003 Washer 2

48 13571283 Engine Left Bracket 1

49 14231645 Transmission Oil Pipe Fixing 1

50 11055423 Torque Converter Oil Pipe Clamp Support 1

51 60330116 Oil Dipstick 1

52 12575183 Oil Filler Port Steel Pipe 1

53 60165344 Pipe Clamp 5

54 11337544 Rubber Hose 1

55 12575131 Bracket 2

56 60014673 Pipe Clamp 2

58 14231858 Fuel Pipe Support 1

59 14231576 Torque Converter Oil Pipe Clamp Support 1

60 A210204000020 Screws 8

61 A210404000004 Washers 8

62 11597856 Oil dipstick kit 1

63 60014672 Pipe clamp body 2

64 A210111000098 Bolts 2

65 10223499 Torque converter oil pipe clamp support 1

66 151009060013A Hose assembly 1

67 14042591 Rubber gasket 1
