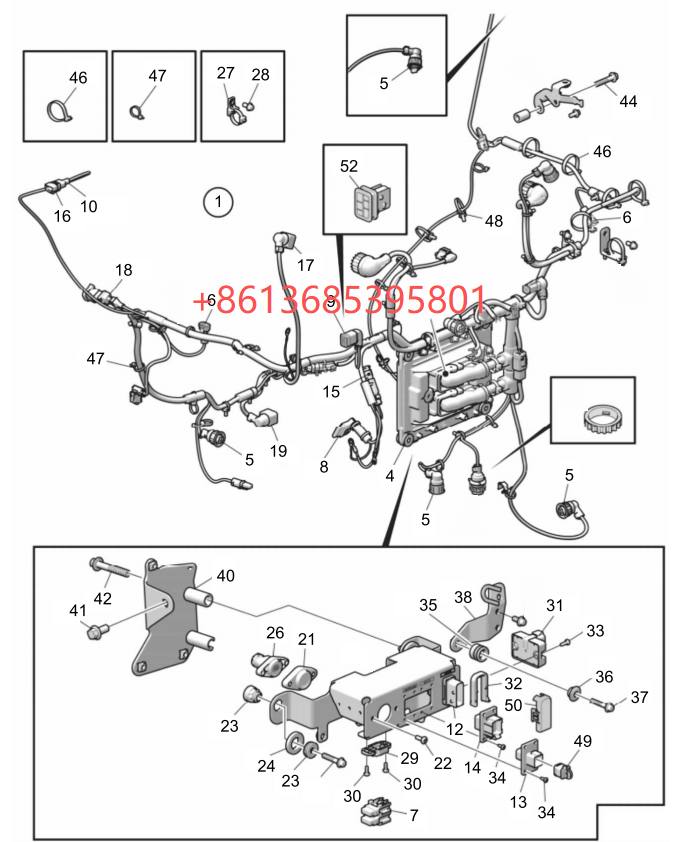

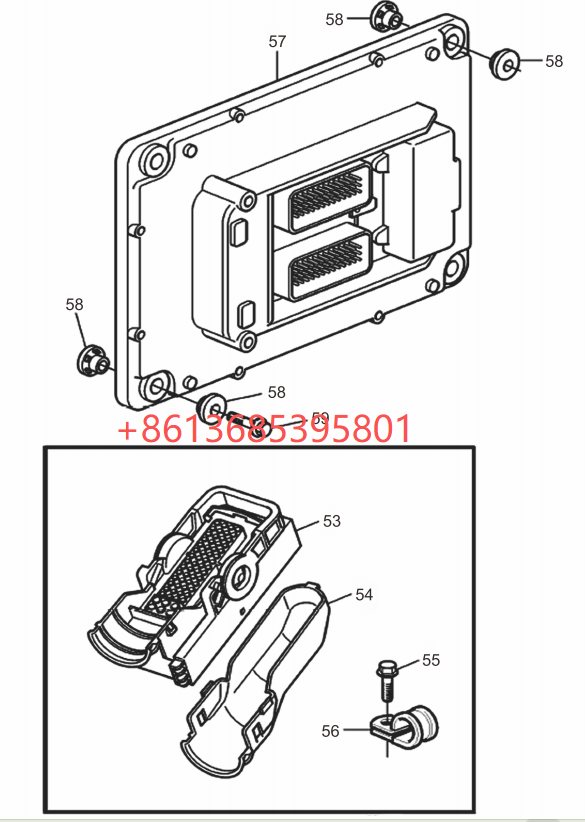

60349745 Control Unit Assembly

发布日期：2026-02-17

SANY Original spare parts

#SANY Original spare parts

#Sany SRSC45

60349745 Control Unit Assembly

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

1 160102110012A275 Wiring Harness 1

4 60131506 Housing 1

5 168899003215A Outer Housing 7

6 168899003218A Socket Outer Housing 1

7 160102110012A277 Fuse Holder 2

8 168899003275A Outer Housing 1

9 160102110012A278 Socket Outer Housing 1

10 60132691 Switch 1

12 160102110012A202 Housing 1

13 168899003827A Label Housing 1

14 168899003836A Cover 1

15 160102110012A279 Housing 1

16 168899002349A Outer Housing 1

17 168899000549A Cover 1

18 160102160034A062 Washer 1

19 160102110012A203 Housing 1

21 168899002483A Cover 1

22 160102110012A280 Socket Head Screw 2

23 160102110010A181 Washer 1

24 160102110012A281 Washer 2

26 168899002488A Button 1

27 60267723 Cable ties 3

28 60203734 Flange bolts 3

29 168899003826A Bearing 1

30 160102110012A282 Socket head cap screws 2

31 168899002490A Control unit 1

32 168899002554A Adapter 1

33 160102100010A027 Parts box assembly 2

34 160102110012A201 Socket head cap screws 8

35 60085302 Rubber gasket 1

36 60085303 Plug 1

37 160102110012A283 Socket head cap screw 1

38 60344682 Bracket 1

40 60267986 Bracket 1

41 60267988 Flange Bolt 1

42 60267987 Flange Bolt 2

44 160102110019B053 Flange Bolt 1

46 60092380 Cable Clip 1

47 60094352 Cable Clamp 1

48 60092811 Cable Knot 1

49 168899003838A Sealing Plug 1

50 160102110010A186 Cap 1

52 160102110010A184 Cap 1

53 60131505 Housing 1

54 60129789 Cover 1

55 60131268 Pipe Clamp 2

56 60203765 Flange Bolt 2

57 60267730 Control Unit 1

58 60132012 Rubber Bushing 4

59 60203736 Flange Bolt 4
