60111888 Front axle

发布日期：2026-02-18

SANY Original spare parts

#SANY Original spare parts

#Sany SCP160G Counterbalance Forklift

60111888 Front axle

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

1 60223587 Bridge Housing 1

2 60122031 Breather 1

5 60099155 Plug 2

6 60161882 Sealing Ring 2

40 60223581 Half Shaft 2

42 60121870 Wheel Hub 2

43 60223582 Wheel Hub Bolt 20

44 B229900004024 Wheel Hub Nut 20

47 60121637 Disc 20

48 60121860 Hex Nut 20

50 60161886 Oil Seal 2

51 60161887 Floating Oil Seal 2

53 60121813 Tapered Roller Bearing 2

54 60121814 Rolling Bearing 2

55 60121643 Isolation ring 2

59 60121872 Nut 2

60 60223599 Bolt 2

121 60121768 Sealing ring 2

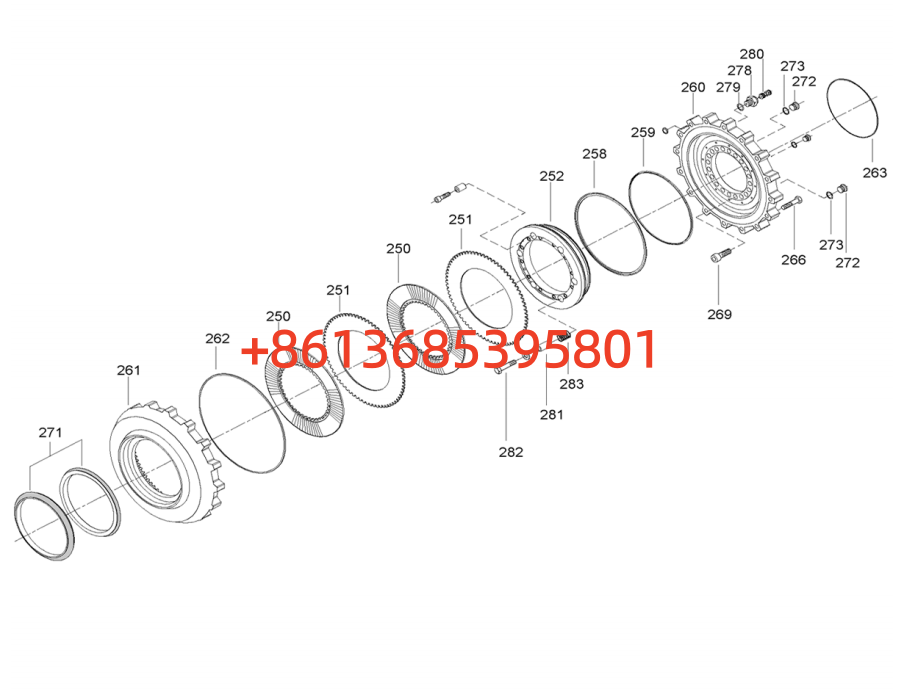

250 60019950 Friction Plate 10

251 60121667 Outer Plate 10

252 60121849 Piston 2

258 60223520 Piston Oil Seal 2

259 60223519 Piston Oil Seal 2

260 60121743 Brake Mount 2

261 60121856 Frame 2

262 60223639 O-ring 2

263 60223633 O-ring 2

266 60223614 Bolt 32

269 60223606 Hex Screw 40

271 60121639 End Face Seal 2

272 60099156 Plug 4

273 60223579 Sealing ring 4

278 60099198 Connector 2

279 60223578 Sealing ring 2

280 60099160 Exhaust valve 2

281 60121650 Pipe 24

282 60223572 Flange bolt 24

283 60019953 Service brake spring 24

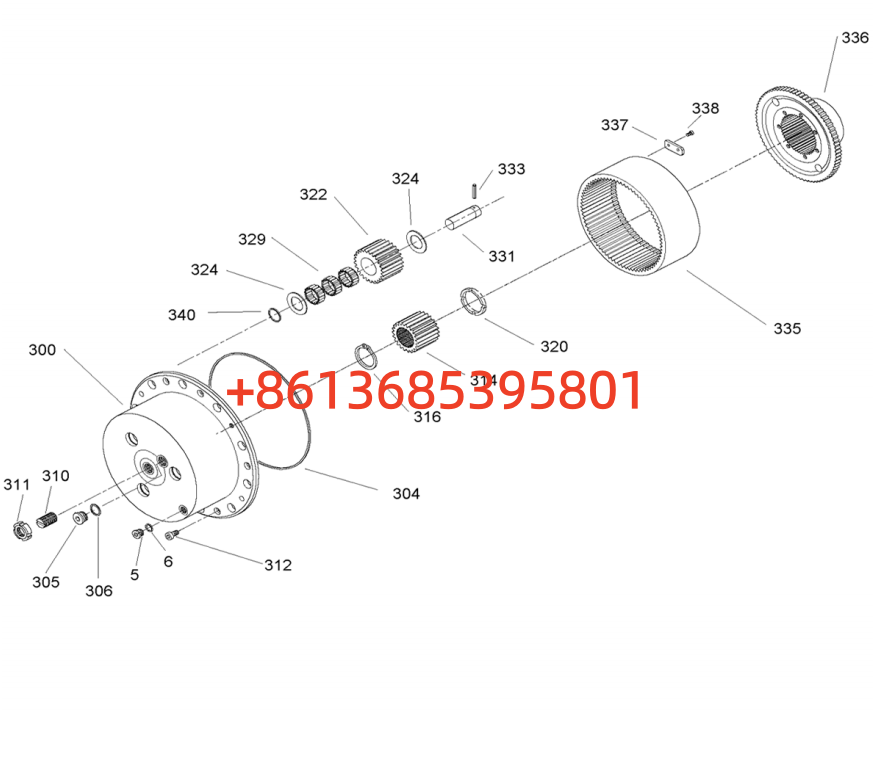

300 60121909 Planetary gear housing 2

304 60223635 O-ring 2

305 60099157 Plug 2

306 60134423 Sealing ring 2

310 60121829 Adjusting nut 2

311 60121857 Slotted nut 2

312 60161875 Bolt 6

314 60121723 Sun gear 2

316 60161874 Retaining ring 2

320 60121673 Thrust washer 2

322 60121731 Planetary gear 8

324 60099232 Thrust washer 16

329 60161868 Needle roller bearing 24

331 60121911 Planetary gear pin 8

SANY Original spare parts

#SANY Original spare parts

#Sany SCP160G Counterbalance Forklift

60111888 Front axle

WhatsApp: 136 8539 5801

WeChat: 136 8539 5801

333 60160961 Locking pin 8

335 60121725 Ring gear 2

336 60121729 Gear ring bracket 2

337 60121996 Retainer 6

338 60223610 Hex bolt 12

340 60161885 O-ring 8

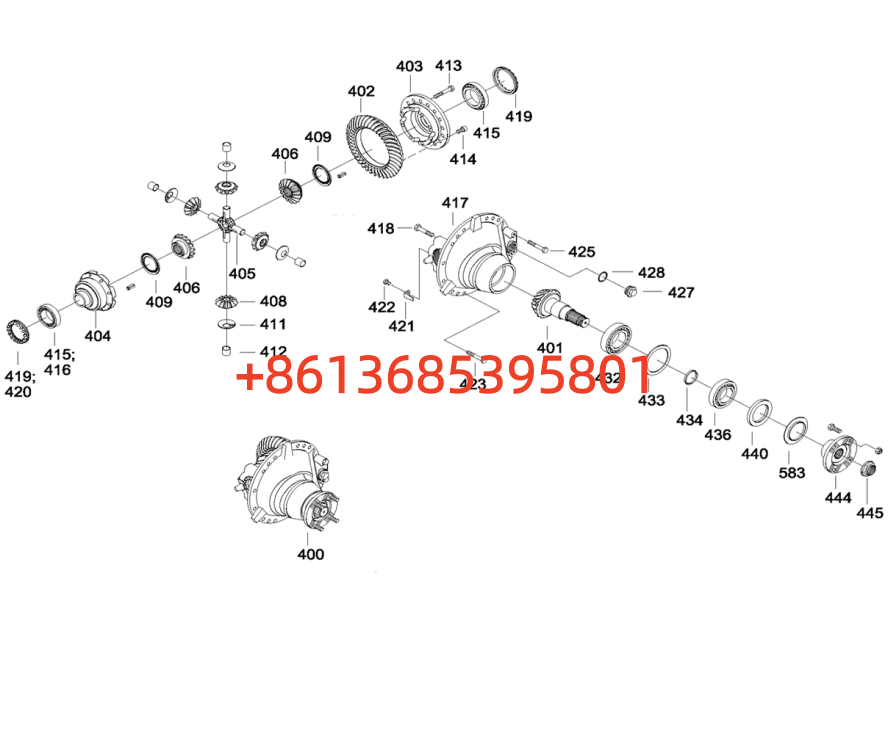

400 60223586 Main Reduction Assembly 1

401 60019947 Main Reduction Drive Gear 1

402 60121727 Ring Gear 1

403 60121758 Differential Housing 1

404 60223573 Differential Housing 1

405 60099222 Cross Shaft 1

406 60134398 Differential Side Gear 2

408 60099169 Differential Gear 4

409 60099186 Shim 2

411 60121922 Thrust Washer 4

412 60099242 Bushing 4

413 60223612 Socket Head Cap Screw 8

414 60161877 Bolt 16

415 60120990 Tapered Roller Bearing 1

416 60121812 Tapered Roller Bearing 1

417 60121619 Main Reducer Housing 1

418 60161876 Bolts 4

419 60121648 Retaining Ring 1

420 60121647 Retaining Ring 1

421 60099177 Locking Plate 2

422 60223625 Hex Screws 2

423 60161878 Bolts 14

425 60223615 Bolts 2

427 60121660 Spiral Plug 1

428 60161883 Copper Washer 1

432 60161871 Thrust Bearing 1

433 60223642 Gasket 1

434 60121655 Ring 1

436 60121811 Tapered Roller Bearing 1

440 60223517 Oil Seal 1

444 60223571 Drive Flange 1

445 60099191 Adjusting Nut 1

583 60121664 Disc 1

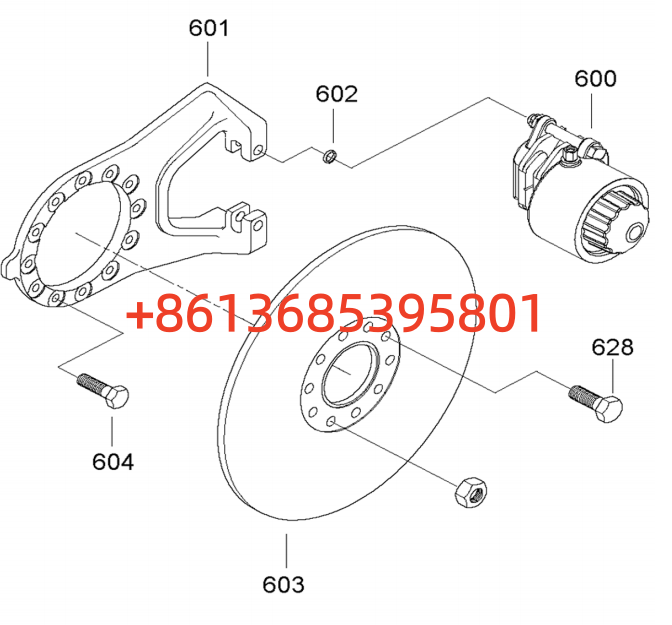

600 60019949 Parking Brake 1

601 60121744 Brake Mount 1

602 60223632 O-ring 2

603 60223584 Brake Disc 1

604 60223618 Hex Bolt 7

628 60223619 Bolt 6

605 60019952 Parking brake friction pad 1

606 60099161 Exhaust valve 1

608 60121788 Snap ring 1

609 60121671 Compression leaf spring 6

610 60121861 Hex nut 1

611 60121839 Bolt 1

612 60121796 Nut cap 1

615 60121807 Pressure latch 1

616 60121862 Hex head screw 2

617 60099192 Slotted nut 2

618 60099203 Cotter pin 2

619 60099265 Oil seal 1

623 60099266 Magnet 2

624 60223515 Spacer ring 2

625 60099244 O-ring 1

626 60121938 O-ring 1

629 60099229 Vent cap 1

630 60099259 Sealing ring 1
