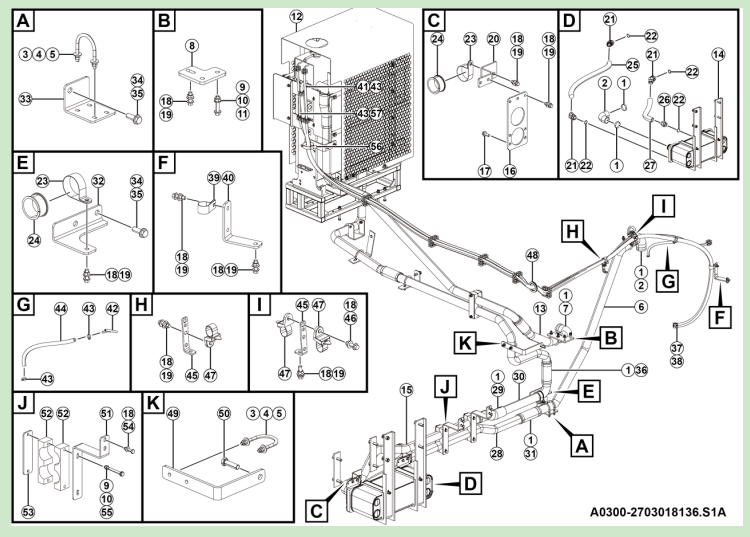

27130148131 Ceiling harness for LGMG spare parts

4011011104

Bolt gb16674.1-m10*35flznyc-8.8-480

4130704969

Cable tie hs-j117

27030161451

Grommet 60*3

27030174081

Bracket 230*197*40

4011010642

Bolt gb5786-m14*1.5*50flznyc-12.9-480

27030158271

Bracket 341*167*50

27030112491

Within beam

27030112501

Right carling

4011011046

Bolt gb5783-m10*45flznyc-8.8-480

4011000817

Bolt gb5782-m10*100epzn-8.8

4130705870

Nylon large tie strap hs-j118

27030171821

Breather hose 16*4*4700

4015000256

Washer gb96.1-8epzn-300hv

4013000033

Nut gb6170-m8epzn-8

27030164821

Bracket 198*128*50

4011000107

Bolt gb5783-m8*30epzn-8.8

27030168861

Bracket 180*150*70

4011010423

Bolt gb5782-m12*85epzn-10.9

4015000186

Washer gb96.1-12epzn-300hv

4013010134

Nut gb6185.1-m12epzn-10

27030168872

Bracket 180*122*114

4011000084

Bolt gb5783-m10*30epzn-8.8

4015000162

Washer gb97.1-10epzn-300hv

4013010119

Nut gb6185.1-m10epzn-8

27030168881

Bracket 200*186*50

27030171801

Bracket 180*88*50

4011000338

Bolt gb5783-m14*50epzn-8.8

27030112501

Right carling

27030112491

Within beam

4011000817

Bolt gb5782-m10*100epzn-8.8

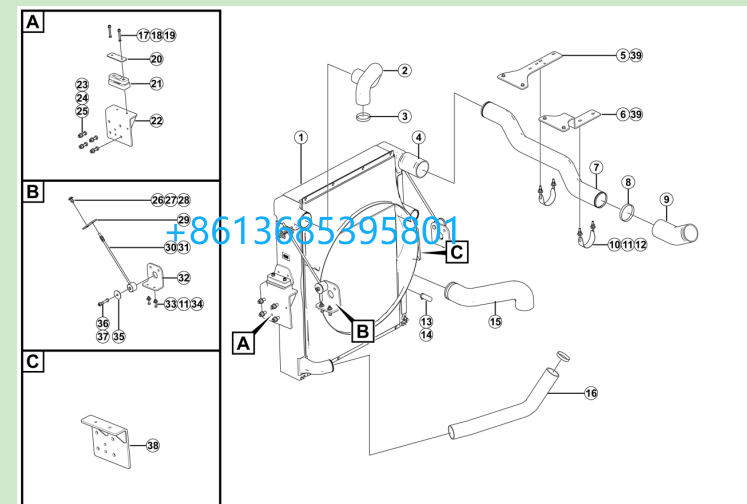

4110709617

Radiator lg03-srq-022

27030164891

Aux radiator slanting support assy

27030181381

Auxiliary radiator guard plate assy

4011010910

Bolt gb5782-m12*75epzn-10.9

4015000168

Washer gb97.1-12epzn-300hv

4190708163

Butterfly spring clamp φ57-φ79

27030155331

Connecting pipe 72*6*270

27030181391

Pipe 60*1.5

27030155311

Connecting pipe 72*6*150

27030168841

Pipe 60*1.5

4011010245

Bolt gb5782-m12*80epzn-10.9

27030163742

Bracket wldmt

4011010539

Bolt gb5782-m12*100epzn-10.9

27030165241

Hose 72*6*170

27030174031

Pipe 60*1.5

4011010422

Bolt gb5782-m12*90epzn-10.9

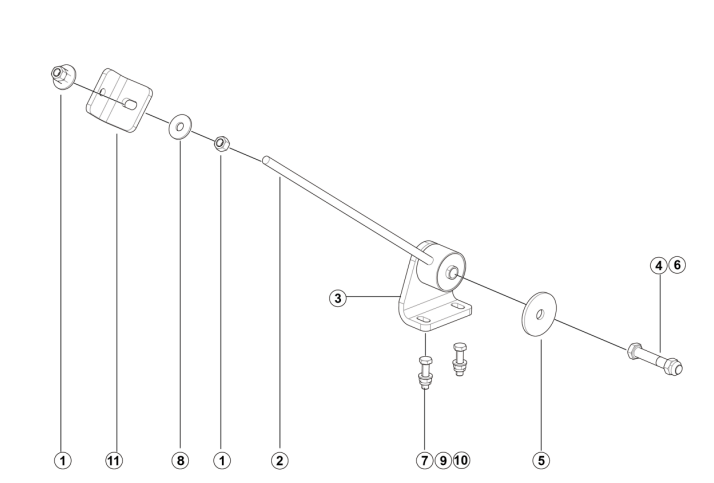

4110001451

Radiator bar

1

27030109692

Support

1

4011010630

Bolt gb5782-m14*85epzn-8.8

1

27030109731

Plate

1

4013010121

Nut gb6185.1-m14epzn-8

1

4011000184

Bolt gb5783-m10*40epzn-8.8

2

4015000186

Washer gb96.1-12epzn-300hv

2

4013010119

Nut gb6185.1-m10epzn-8

2

4015000162

Washer gb97.1-10epzn-300hv

2

27030164901

Bracket 70*65*45

1

4011011009

Bolt gb16674.1-m10*55flznyc-8.8-480

4013010375

Nut gb6177.1-m10flznyc-8-480

4011011015

Bolt gb16674.1-m10*25flznyc-8.8-480

4011011069

Bolt gb16674.1-m8*35flznyc-10.9-480

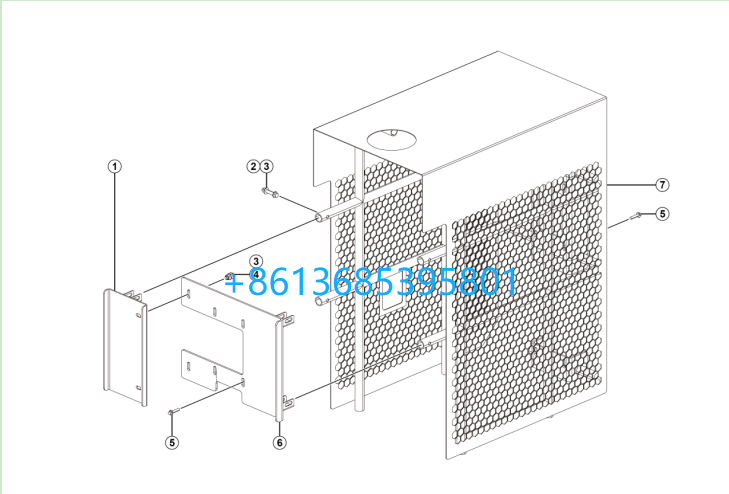

27030180571

Bracket wldmt

27030180471

Bracket wldmt

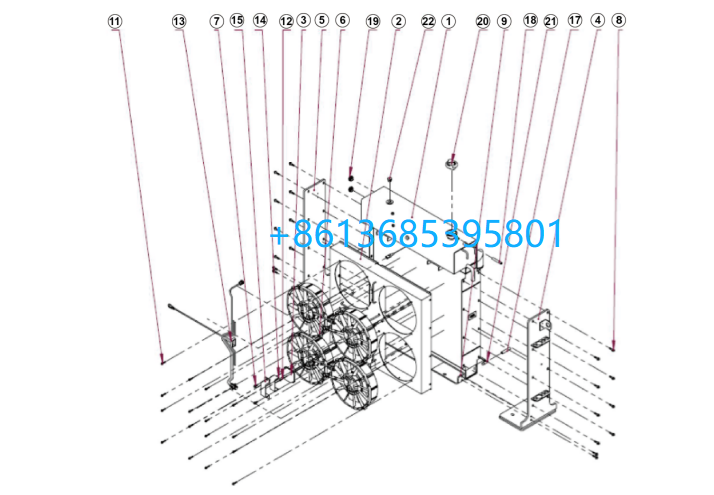

4110709617001

Fan shroud

4110709616003

Controller

4110706729005

Lh bracket assy 4110706729005

4110706729006

Rh bracket assy 4110706729006

4110709616006

Electronic fan

4110703141019

Bolt gb5789-m8*20-10.9

4110706749113

Bolt gb5789

4110706729009

Nut 4110706729009

4015010289

Washer gb96.1-8flznyc-300hv-480

4110708466002

Bolt gb5789-m6*30flznyc-10.9-480

4110709616008

Bolt gb5789-m5*20flznyc-10.9-480

4110709616004

Harness

4190709216212

U-shaped shock-absorbing pad jzd-80

4110709616005

Fixing plate

4110709616010

Temperature sensor

4110709616011

Hose ф8x3

4110709616012

Breather hose ф8x3

4110708192012

Liquid level sight glass (m27*1.5)

4190710291004

Water filling cap 0.5

4190710596018

Water drain switch fskg-i

4110709616007

Threaded plug

4013000205

Nut gb6170-m16epzn-10

4011010364

Bolt gb5783-m16*50-10.9

4011010204

Bolt gb5783-m16*70epzn-10.9

27030123151

Right support

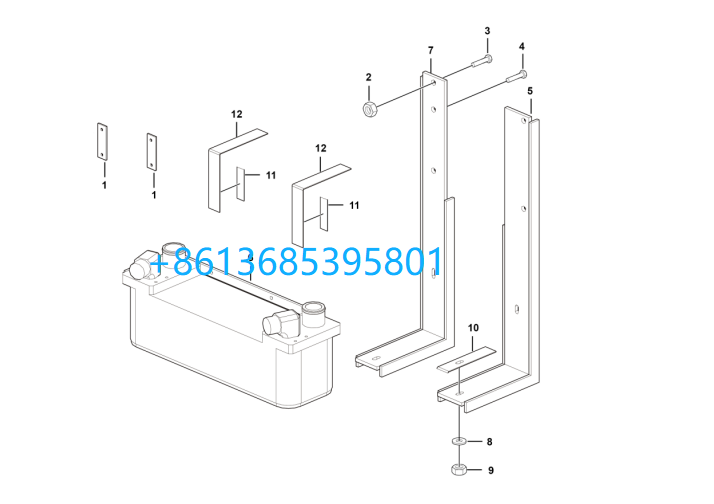

4110704893

Oil cooler

27030123121

乐福 support

4015000162

Washer gb97.1-10epzn-300hv

4013000007

Nut gb6170-m10epzn-8

27030138261

Plate

27050106212

Plate

27030123171

Strap

27030168401

Engine water outlet hose 87*6

4190708164

Butterfly spring clamp φ70-φ92

27030173541

Hose 112*6*150

27030173941

Plate 455*220*8

27030173581

Bracket 395*220*86

27030173951

Pipe 100*1.5

4190708166

Butterfly spring clamp φ93-φ118

27030173551

Hose 112*6

27240102332

Exhaust pipe strap

4015000197

Washer gb96.1-10epzn-300hv

4013000007

Nut gb6170-m10epzn-8

27030164971

Plug 28*4

4013000011

Nut gb6170-m12epzn-8

27030172121

Intercooler air outlet hose

27030173961

Engine water inlet hose 87*6

4011011013

Bolt gb5783-m10*90epzn-12.9

4015000162

Washer gb97.1-10epzn-300hv

4013010567

Nut gb6185.1-m10epzn-12

27030109021

Plate

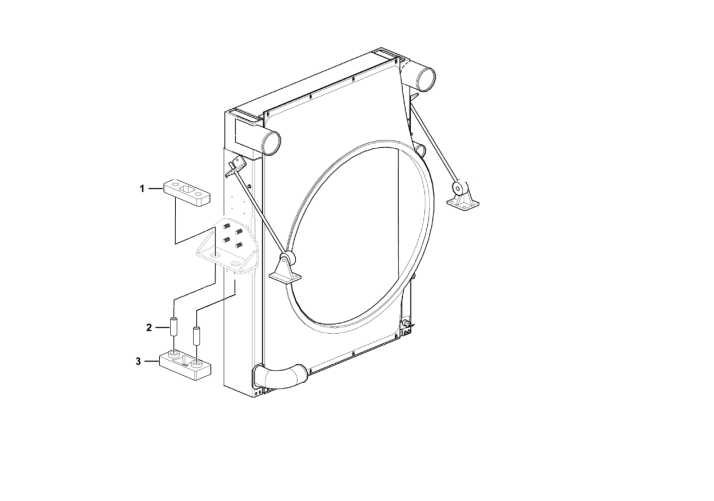

4110001445

Radiator shock absorber assy

27030173491

Lh bracket wldmt

4015000181

Washer gb97.1-16epzn-300hv

4013010122

Nut gb6185.1-m16epzn-8

4011000090

Bolt gb5783-m12*35epzn-8.8

4015000186

Washer gb96.1-12epzn-300hv

4013010120

Nut gb6185.1-m12epzn-8

27030124581

Plate

4110001451

Radiator bar

4017000011

Hose clamp jb8870-d32

27030173531

Bracket 160*150*80

4011000049

Bolt gb5782-m10*55epzn-8.8

4013010119

Nut gb6185.1-m10epzn-8

27030109731

Plate

4011010630

Bolt gb5782-m14*85epzn-8.8

4013010121

Nut gb6185.1-m14epzn-8

27030173511

Rh bracket wldmt

4011000474

Bolt gb16674.1-m10*25epzn-8.8

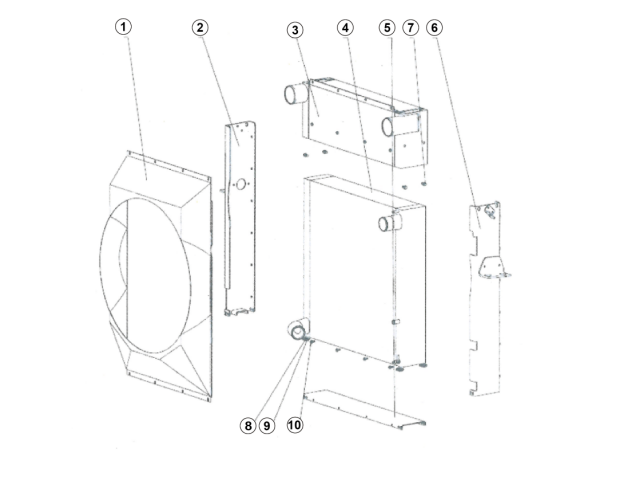

4110707385002

Left frame

4110707385003

Intercooler

4110707385004

Water radiator

4110707385005

Framework under

4110707385006

Right frame

4110707385007

Bolt

4110707385008

Bolt

4110707385009

Nut

4110707385010

Bolt

4110001444

Radiator absorber steel sheath

4110001443

Radiator lwr shock block

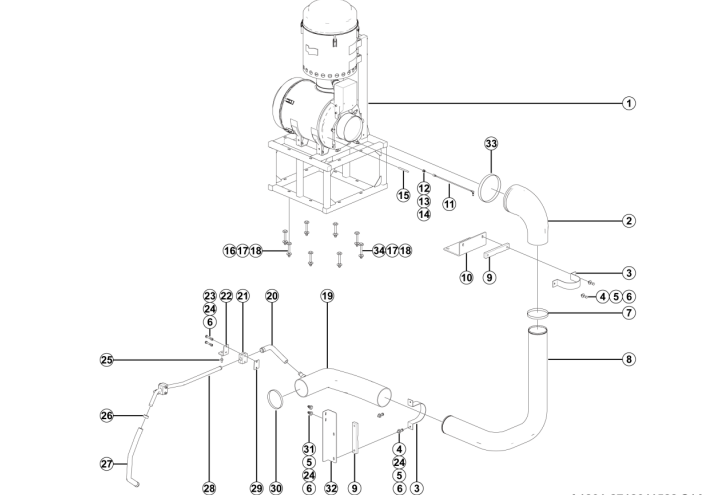

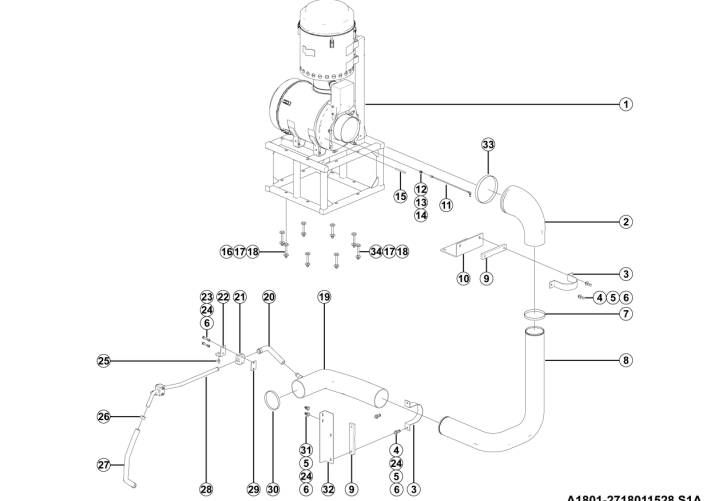

27180114201

Air outlet hose 215*6

27180102911

Clamp

4011010732

Bolt gb5782-m10*50flznyc-8.8-480

4015010278

Washer gb96.1-10flznyc-300hv-480

4013010292

Nut gb6185.1-m10flznyc-8-480

4190708170

Butterfly spring clamp φ146-φ168

27180115291

Air intake pipe 141*1.5*1655

27180104241

Plate

27180111361

Pipe support welding

27100142441

Air filter air hose φ6*1

4120000194

Nut seat ng8

4120000196

Clip spring ng8

4120000197

Elastic element ng8

27200108491

Wire

4011011112

Bolt gb5782-m12*110flznyc-10.9-480

4015010286

Washer gb96.1-12flznyc-300hv-480

4013010379

Nut gb6185.1-m12flznyc-10-480

27180115071

Air intake hose 151*142*5*870

27180115031

Air compressor air intake hose 35*5*268

27030122161

Rubber support

27030131172

Steel pipe supt

4015010339

Washer gb97.1-10flznyc-300hv-480

4011010993

Bolt gb16674.1-m10*20flznyc-8.8-480

4190708159

Butterfly spring clamp φ25-φ45

27180115091

Air compressor air intake hose 35*5*560

27180115081

Air compressor air intake pipe 25*1.5*792

27030122151

Plate

4190708169

Butterfly spring clamp φ133-φ156

4011010727

Bolt gb5783-m10*35flznyc-8.8-480

27180104681

Plate

4190708174

Butterfly spring clamp φ197-φ219

4011011064

Bolt gb5782-m12*115flznyc-10.9-480

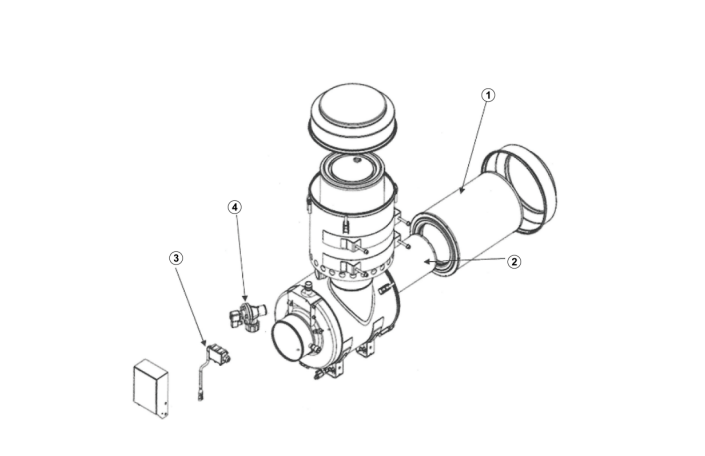

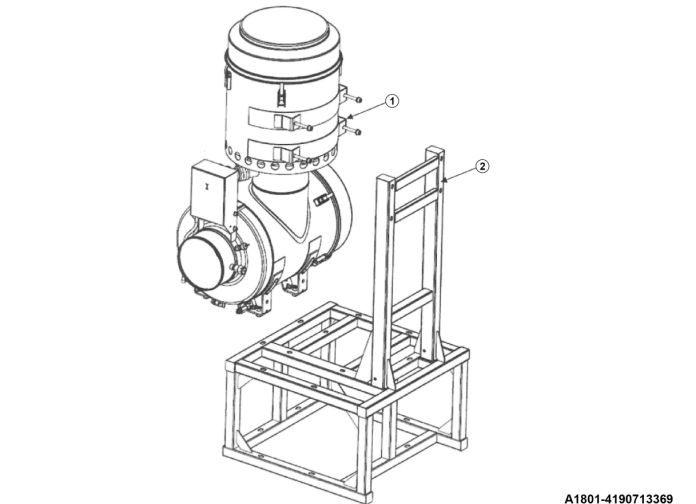

4190713369002

Air filter holder

4190707575002

Safety filter element a287

4190704203004

Controller assy b960

4190704203005

Pulse valve b908

27010113411

Plate

27010110671

Plate

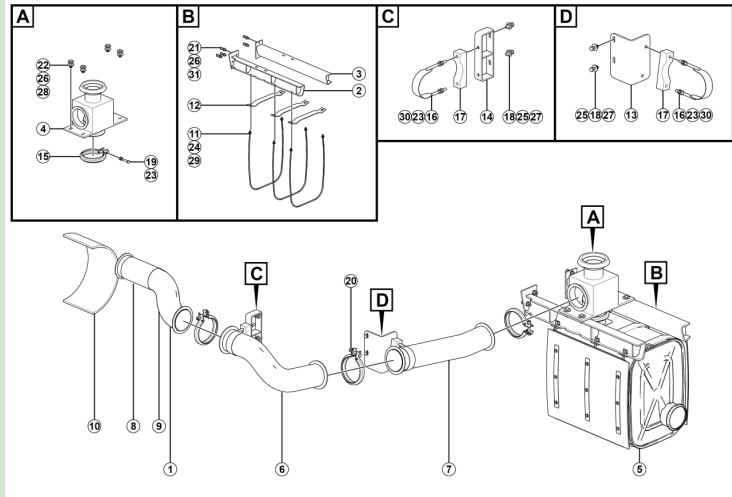

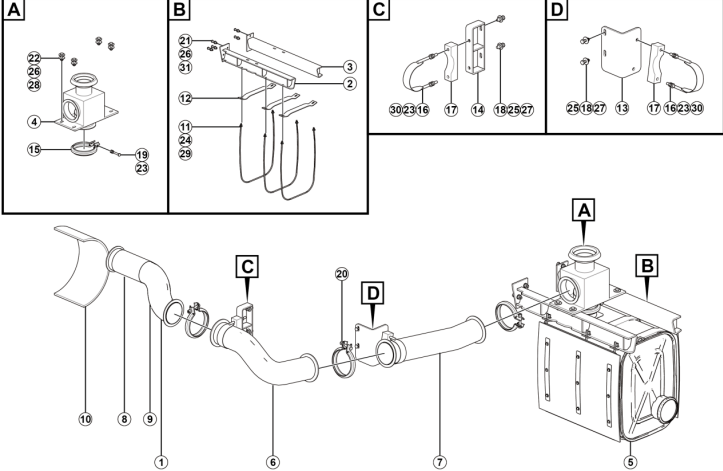

4110001279

Exhaust conversion box assy

4190713027

Muffler assy lg24-xyq-02

27240114851

Exhaust pipe wldmt

4110703098

Exhaust pipe ⅲ

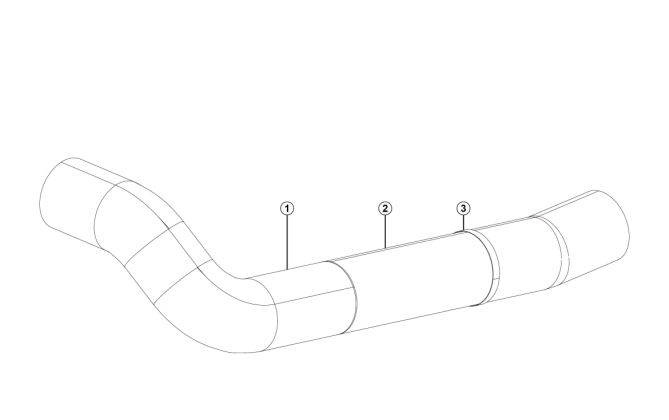

4190713441

Upr exhaust pipe heat insulation grm-lg-d120-550-w2

4190713440

Exhaust pipe heat insulation grm-lg-k16

4190713439

Turbocharger heat insulation grm-lg-k16

27010101611

Tensioning lever

27010110711

Plate

27240114861

L-shaped plate 210*128*115

27240104681

Supportⅰ

4110000768

Clamp

27240103051

Plate

27240103721

Front plate assembly

4011010164

Bolt gb5782-m10*35epzn-8.8

4011000051

Bolt gb5782-m10*70epzn-8.8

4011000052

Bolt gb5782-m10*75epzn-8.8

4011000064

Bolt gb5782-m12*50epzn-8.8

4011000091

Bolt gb5783-m12*40epzn-8.8

4013000033

Nut gb6170-m8epzn-8

4013010119

Nut gb6185.1-m10epzn-8

4013010120

Nut gb6185.1-m12epzn-8

4015000197

Washer gb96.1-10epzn-300hv

4015000186

Washer gb96.1-12epzn-300hv

4015000256

Washer gb96.1-8epzn-300hv

4015000162

Washer gb97.1-10epzn-300hv

4015000168

Washer gb97.1-12epzn-300hv

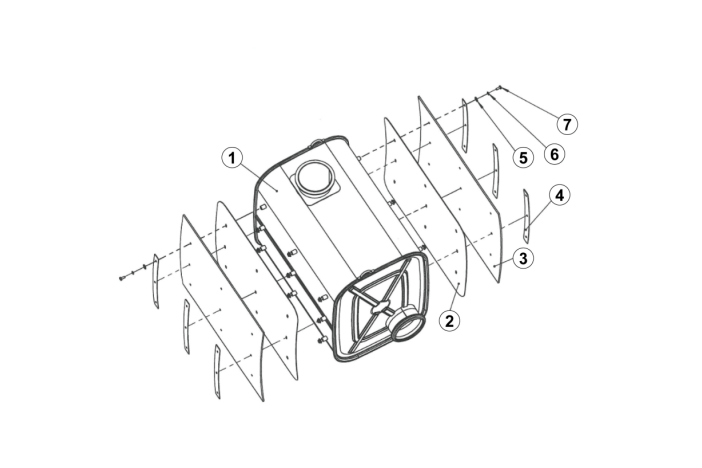

4190713027002

Heat shield

4190713027003

Heat insulation

4190713027004

Rib

4015010375

Washer gb93-6flznyc-65mn-480

4190713027005

Washer gb96.2-6f1znyc-300hv-480

4011010747

Bolt gb5783-m6*16flznyc-8.8-480

4190718716

Lwr exhaust pipe heat insulation grm-lg-d120-660-w1

4190708168

Butterfly spring clamp φ121-φ143

4011000276

Bolt gb5783-m6*25epzn-8.8

4015000207

Washer gb97.1-6epzn-300hv

4013000028

Nut gb6170-m6epzn-8

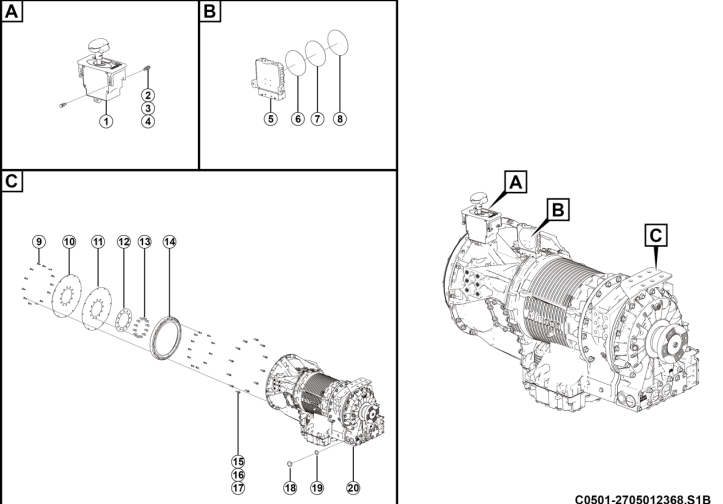

4110708615

Tcm 73nr14w2

4110702825

Pressure switch 29511309（10psi）

4110706007

Retarder control mod 29506474

4110707935

Retarder mod joystick 29570374

4110704943

Bolt m8*1.25*25

4110708531

Flexible disc assy

4110708532

Flexible disc

4110708528

Spacer aj04-005-01

4110708801

Flex plate bolt m12*1.75*25

4110708530

Flexible disc mounting ring aj04-005-020

4012010145

Stud gb900-a m10*30flznyc-10.9-480

4015000025

Washer gb93-10-65mn

4013010346

Nut gb6170-m10flznyc-10-480

4110702840

Oil plug ih000002

4110702846

O-ring 37.47*3（ih004104）

4110708611

Transmission assy 4870wbd（e034459）

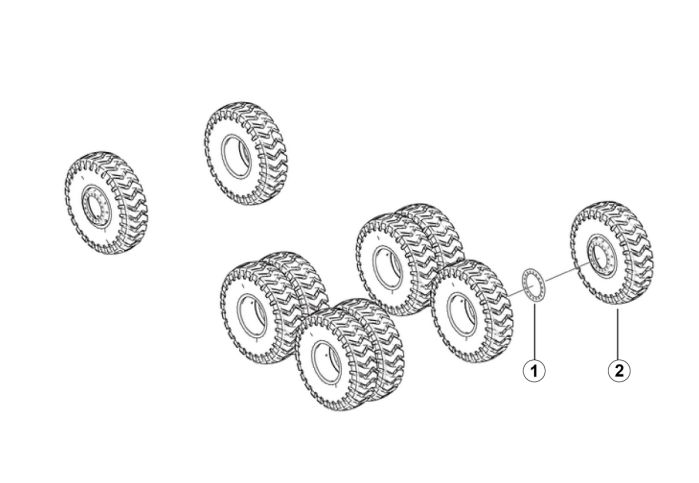

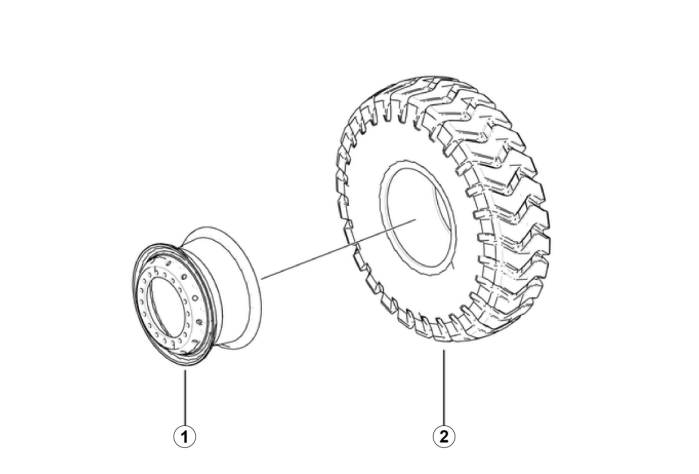

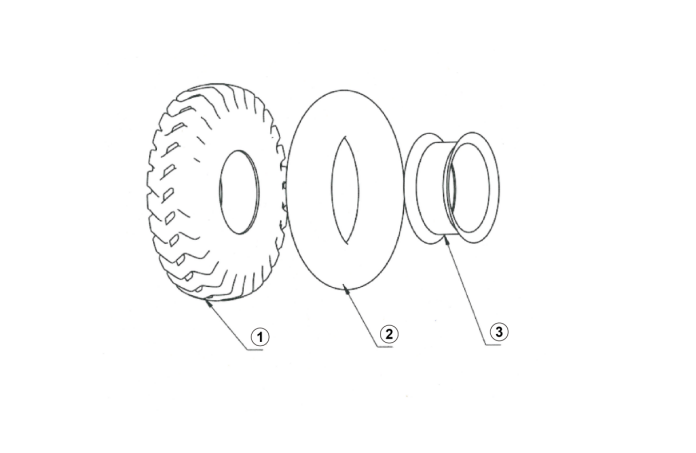

27520002531

Wheel assy

4110705612

Tyre 16.00r25-e3 super etot

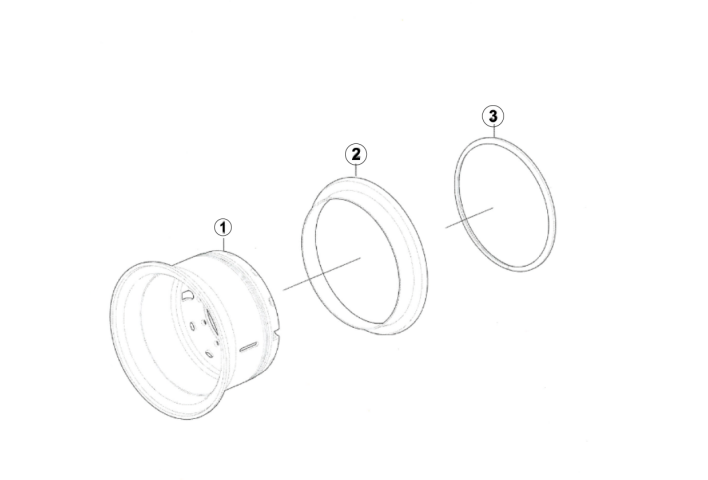

4110706921002

Rim flange 25-10.00/2.0ta-3

4110706884002

Locking ring 25-11.25*2.0-2

4110705612002

Inner tube

4110705612003

Tube flap
