13153715 Amplitude Transmission Assembly

1 A290000002660 Universal Protective Cap for Grease Fittings 28

2 A210804000002 Grease Fittings 12

3 11595187 Plugs 4

4 12869447 Stop Blocks 110×30×12 12

5 A210111000212 Bolts M16×35 GB5783 Grade 10.9 48

6 21001338 Washers 16 GB97.1 300HV 52

7 13061468 Luffing Cylinder Front Axle 100 2

8 13065001 Luffing Cylinder 2

9 13060455 Boom 1

10 13061466 Boom Front Axle 110 2

11 12879305 120×30×12 14

12 13008751 M30 rubber plug 9

13 13056845 Tripod 1

14 A210406000014 Washer 20GB97.1 300HV 6

15 A210111000289 Bolt M20×45GB5783 10.9 grade 6

16 14427822 Oil pipe bracket 1

17 12562321 Gasket 3 5

18 13008755 M20 rubber plug 5

19 A210111000263 Bolt 4

20 13061464 Support arm rear axle 120 1

21 13203322 Support arm 1

22 11678878 Rubber plug 1

23 A210111000053 Bolt 4

24 12947752 Clamping plate 120×35×16 2

25 13061463 Boom rear axle 140 1

26 13061467 Luffing cylinder rear axle 100 2
#13153715 Amplitude Transmission Assembly
#Sany Rotary Drilling Rig  #Sany Rotary Drilling Rig parts
#sanyparts #sany  #SR405RH10 rotary drilling rig body
#Rotary Rig #sanyparts #sany # #SR405RH10
WhatsApp: 136 8539 5801
WhatsApp: 136 8539 5801
WeChat: 136 8539 5801

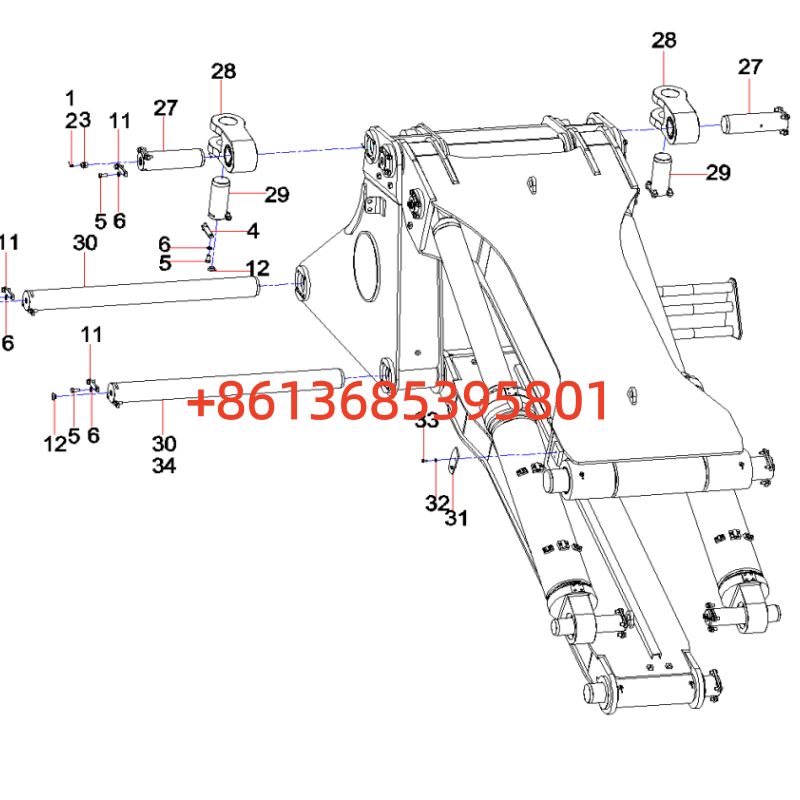

1 A290000002660 Universal Protective Cap for Grease Fittings 28

2 A210804000002 Grease Fittings 12

3 11595187 Plugs 4

4 12869447 Stoppers 110×30×12 12

5 A210111000212 Bolts M16×35 GB5783 Grade 10.9 48

6 21001338 Washers 16 GB97.1 300HV 52

11 12879305 Clamping Plates 120×30×12 14

12 13008751 M30 Rubber Plugs 9

27 13061462 Lower Shaft of Cross Joint 110 2

28 13061475 Cross Joint Assembly 2

29 12926614 Support rod upper shaft 2

30 13061465 Turntable shaft 120 2

31 13071154 Limit baffle 1

32 21001328 Washer 2

33 A210111000012 Bolt M10×20 GB5783 Grade 10.9 2

34 13166286 Luffing hydraulic system 1
